A80

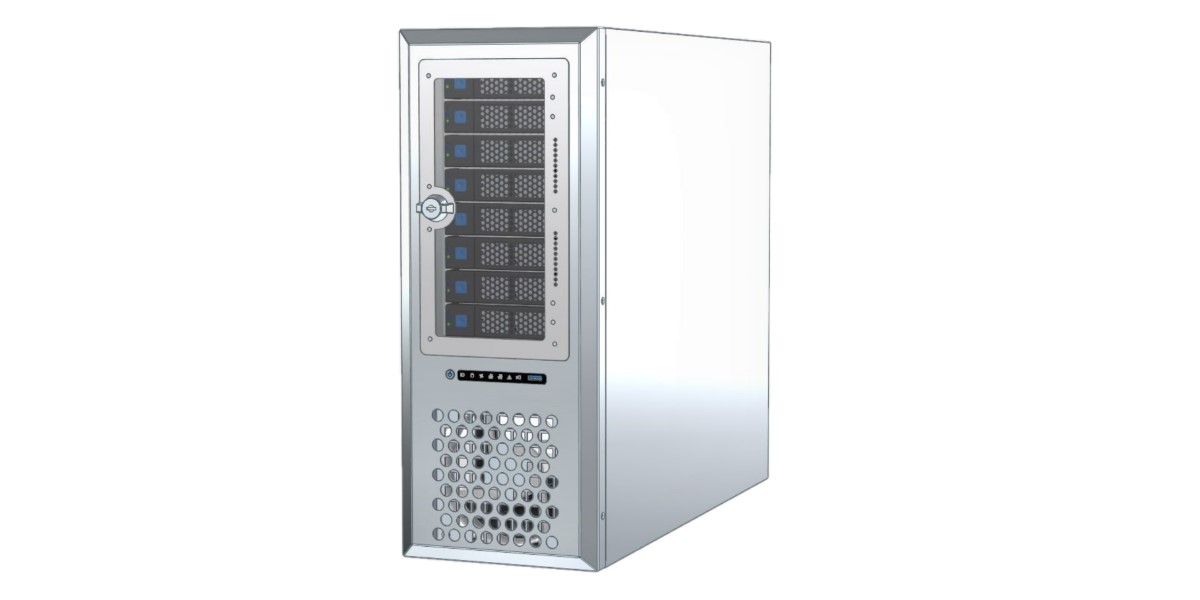

Tower Server 8 Bay Chassis
Supports 8-bay sas3,sata3 3.5" ,2.5"HDD cage 12Gb/s Mini-SAS HD backplane
.
Key Features
Support SAS 3.0 12Gb/s, SATA 3.0 6Gb/s interface or backward compatibility.
Built-in front access USB3.0 port
Optional internal 2-bay 2.5 HDD cage for OS drive ( SAS/SATA ) or Cache (NVMe) buffer use
SATISFICATION- Whenever you have any queries of products, we’ll dive right in and find out the root cause and feedback the best solution.
SPECIFICATIONS
TOWER SERVER 8 BAY CHASSIS
ACCESSORY
M/B
ATX 12":X 9.8""
1
2.5" DRIVE BAY*2
Drive Bays
8X3.5" hot-swap
2
PSU 800W, CRPS 2U 1200W
Front Control
POWER ON/OFF,USB3.0
3
Indicators
POWER STATUS, HDD STATUS, FAN STATUS,LAN ACTIVITY
4

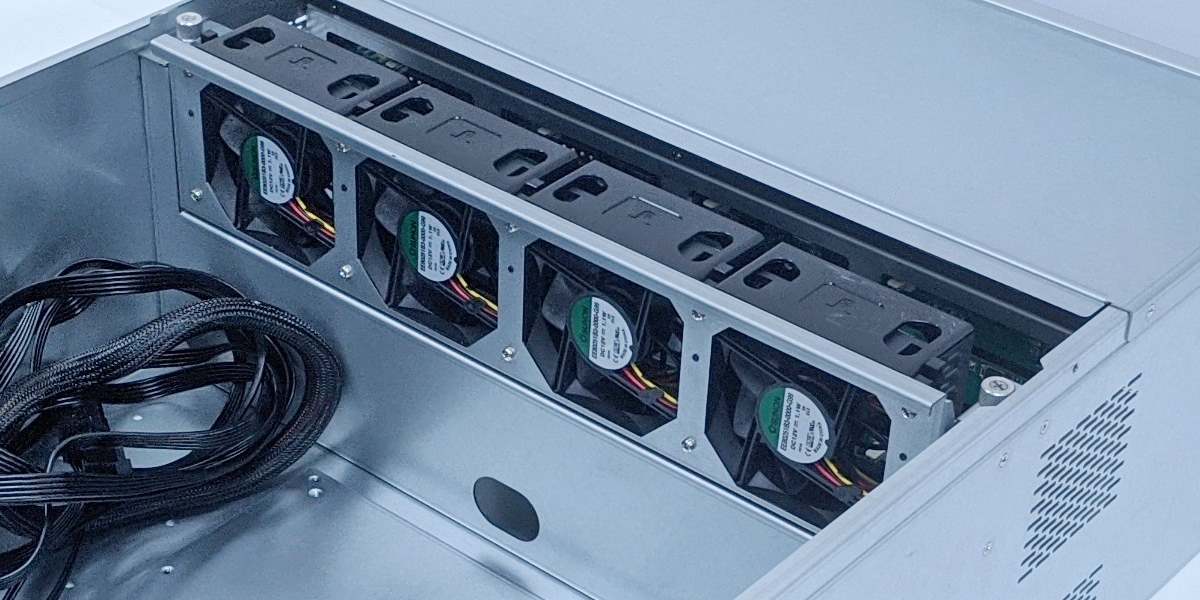

Cooling Fans
80X38 2PCS
5
HDD Backplane
SAS3.0,SATA3.0 X8 12Gb/s Mini-SAS (SFF8643)
6
Expansion Slots
7X Full Height
PSU Form Factor
PS2, PS2 REDUNDANT 80Plus Meet CE Rohs
DOWNLOAD
Material
AL6061,1.0mmSGCC,ABS-PC
1
Datasheet
A80 Datasheet
Net Weight
12.2kg
Gross Weight
13.5kg
Dimensions (DxWxH)
480X170X426 (mm)
