S436A

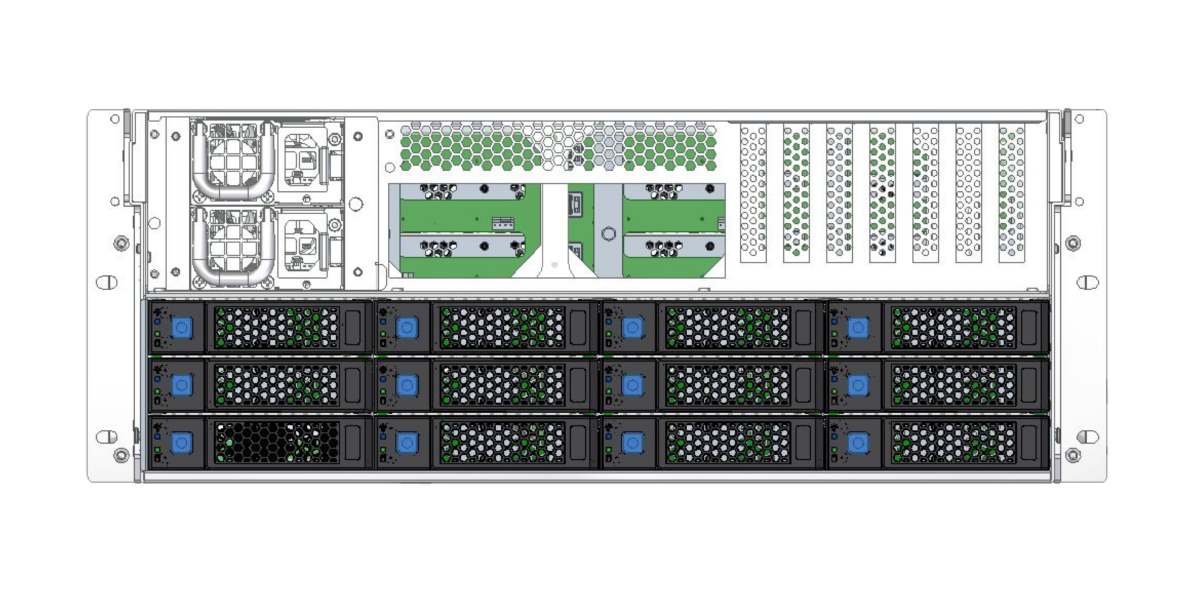

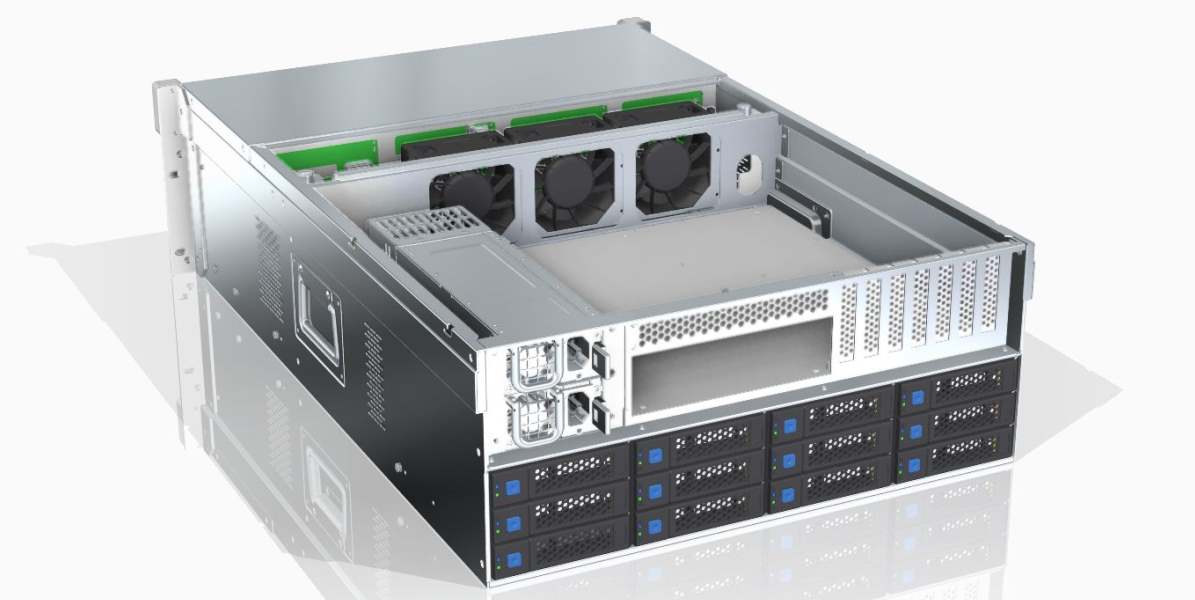

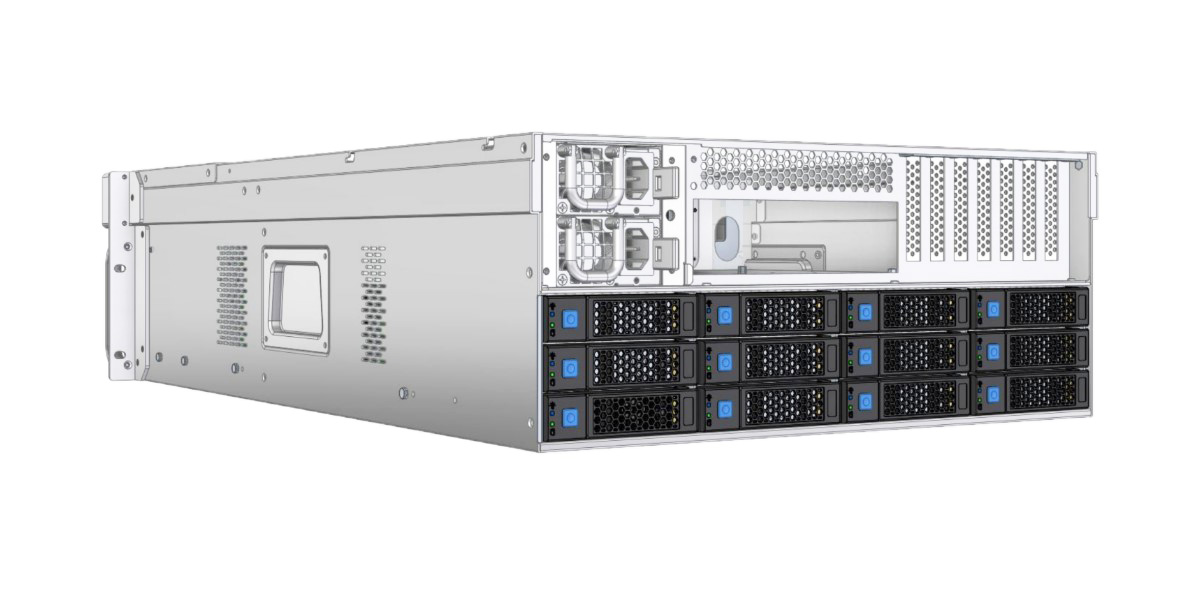

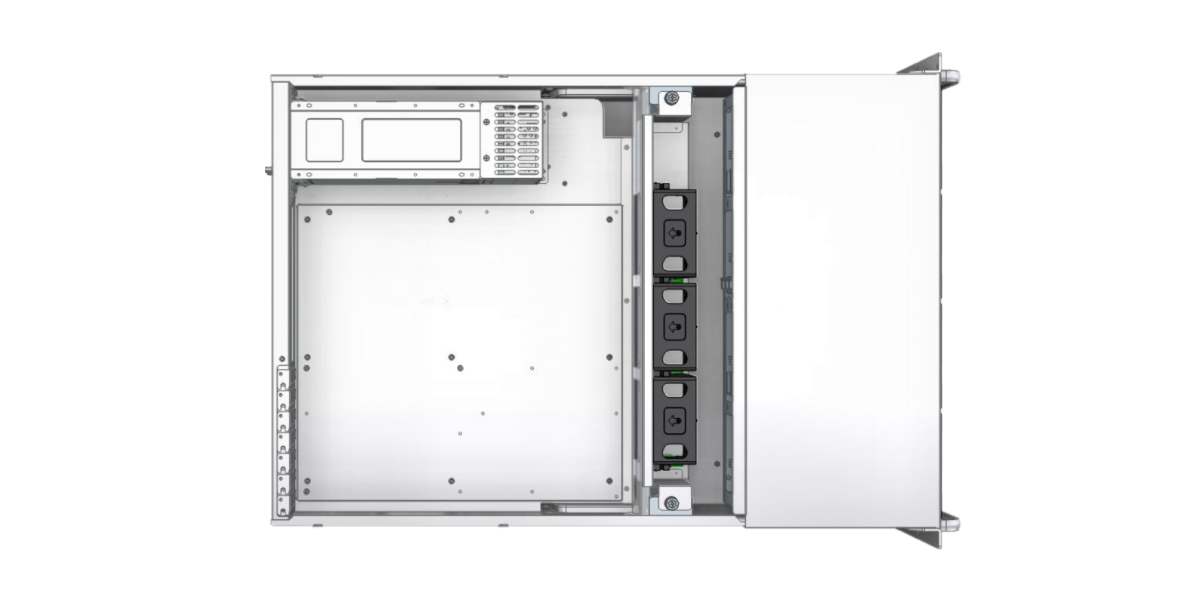

iZEN S436A 4U SERVER CHASSIS (4U 36 Bay)
Supports 36-bay sas3,sata3 3.5" ,2.5"HDD cage 12Gb/s Mini-SAS HD backplane
.
Key Features
Support SAS 3.0 12Gb/s, SATA 3.0 6Gb/s interface or backward compatibility.
Support 5 pcs SFF-8643 internal MH1 mini-SAS HD interface connector for HBA card.
Built-in front access USB3.0 port
Optional internal 2-bay 2.5 HDD cage for OS drive ( SAS/SATA ) or Cache (NVMe) buffer use
SATISFICATION- Whenever you have any queries of products, we’ll dive right in and find out the root cause and feedback the best solution.
SPECIFICATIONS
4U SERVER RACKMOUNT CHASSIS
ACCESSORY
M/B
eATX 12":X13"
1
2.5" DRIVE BAY*2
Drive Bays
36X3.5" hot-swap
2
PSU 800W, CRPS 2U 1600W
Front Control
POWER ON/OFF,UID,USB3.0
3
I2C, 4-pin, 600mm
Indicators
POWER STATUS, HDD STATUS, FAN STATUS,LAN ACTIVITY
4
Cooling Fans
80X38 3PCS
5
HDD Backplane
SAS3.0,SATA3.0 X8 12Gb/s Mini-SAS (SFF8643)
6
Expansion Slots
7X Full Height
PSU Form Factor
PS2, PS2 REDUNDANT 80Plus Meet CE Rohs
DOWNLOAD
Material
AL6061,1.0mmSGCC,ABS-PC
1
Datasheet
S436A Datasheet
Net Weight
21.5kg
Gross Weight
25.2kg
Dimensions (DxWxH)
650X431X176 (mm)
