S660A

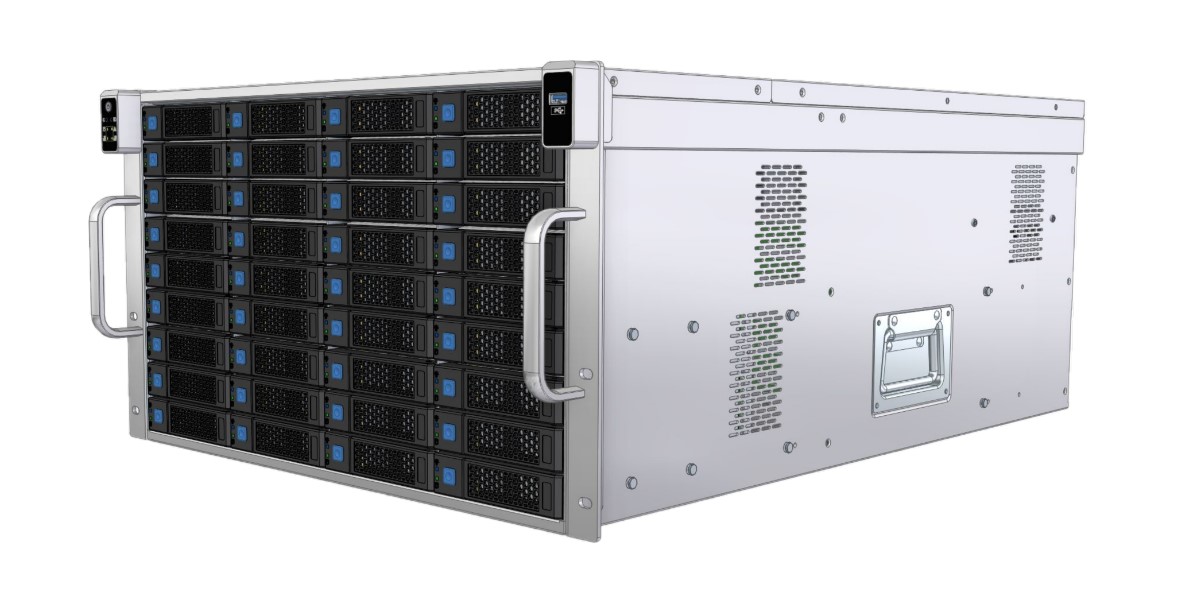

iZEN S660A SERVER CHASSIS (6U 60 Bay))
Supports 60-bay sas3,sata3 3.5" ,2.5"HDD cage 12Gb/s Mini-SAS HD backplane
.
Key Features
Support SAS 3.0 12Gb/s, SATA 3.0 6Gb/s interface or backward compatibility.
Support 10 pcs SFF-8643 internal MH1 mini-SAS HD interface connector for HBA card.
Built-in front access USB3.0 port
Optional internal 2-bay 2.5 HDD cage for OS drive ( SAS/SATA ) or Cache (NVMe) buffer use
SATISFICATION- Whenever you have any queries of products, we’ll dive right in and find out the root cause and feedback the best solution.
SPECIFICATIONS
6U SERVER RACKMOUNT CHASSIS
ACCESSORY
M/B
E-ATX 12:X13"
1
2.5" DRIVE BAY*2
Drive Bays
60X3.5" hot-swap
2
PSU Redundant 1600W

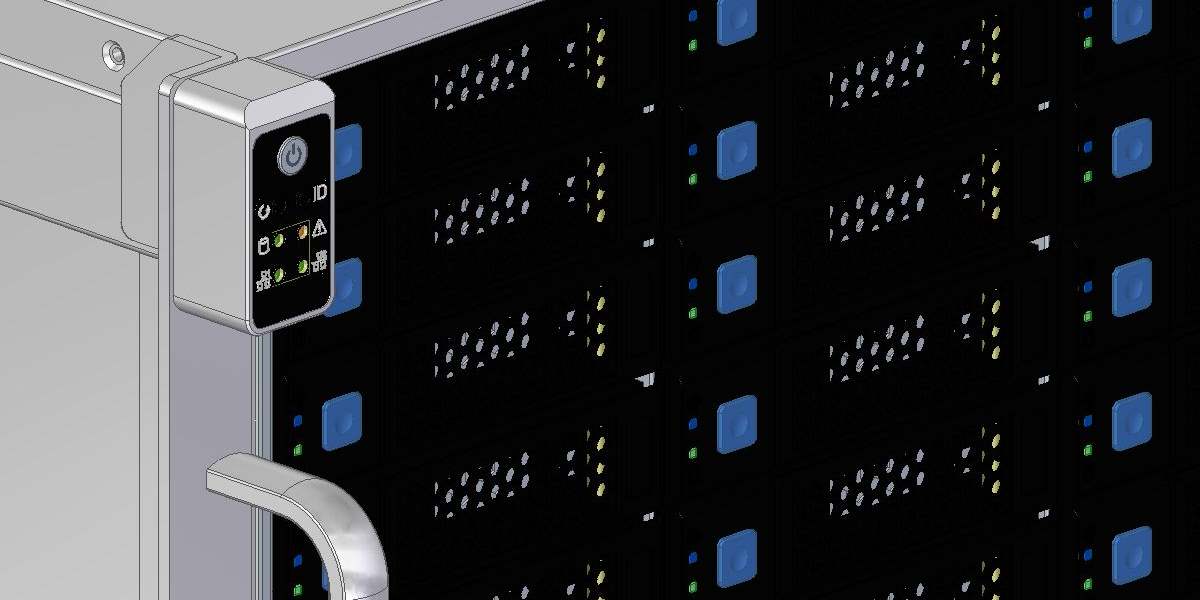

Front Control
POWER ON/OFF,UID,USB3.0
3
I2C, 4-pin, 600mm
Indicators
POWER STATUS, HDD STATUS, FAN STATUS,LAN ACTIVITY
4
Cooling Fans
80X38 7PCS
5
HDD Backplane
SAS3.0,SATA3.0 X8 12Gb/s Mini-SAS (SFF8643)
6
Expansion Slots
7X Low Profile
PSU Form Factor
PS2, PS2 REDUNDANT 80Plus Meet CE Rohs
DOWNLOAD
Material
AL6061,1.0mmSGCC,ABS-PC
1
Datasheet
S660A Datasheet
Net Weight
26.5kg
Gross Weight
31.5kg
Dimensions (DxWxH)
650X431X265 (mm)
