S548C JBOD

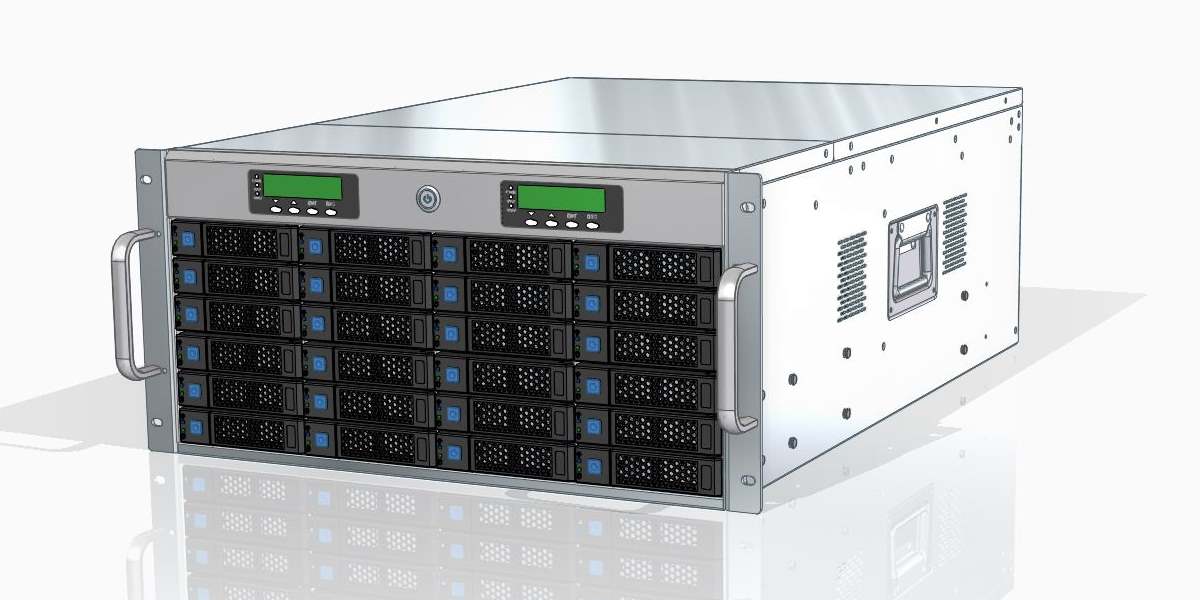

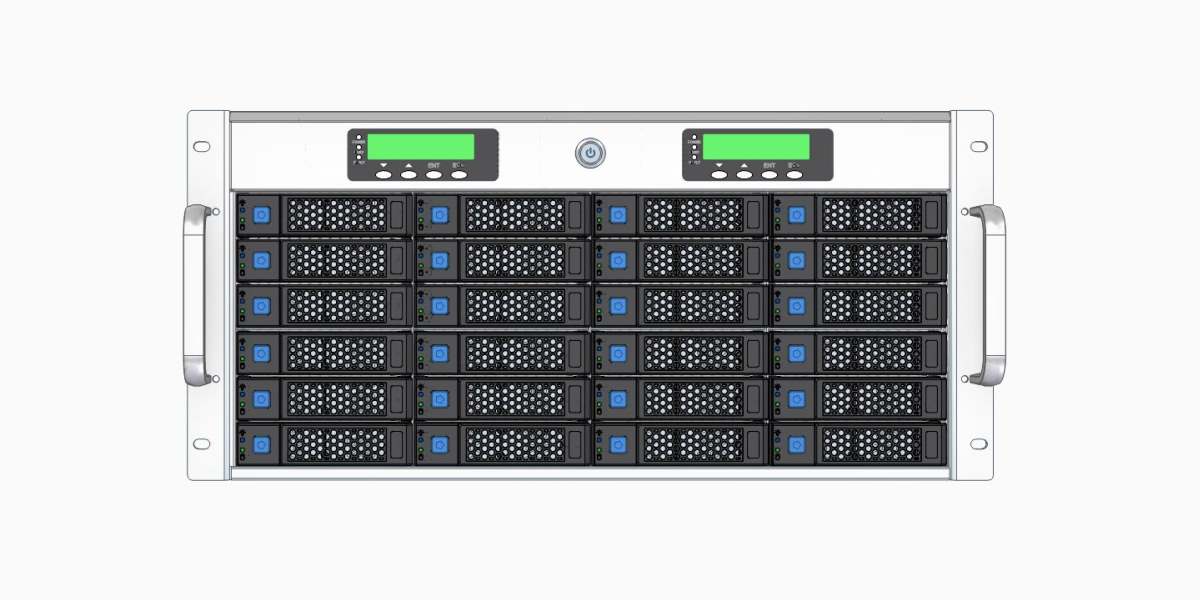

iZEN S548C JBOD CHASSIS (5U 48 Bay)
Supports 48-bay sas3,sata3 3.5" ,2.5"HDD cage 12Gb/s Mini-SAS HD backplane
.
Key Features
Support SAS 3.0 12Gb/s, SATA 3.0 6Gb/s interface or backward compatibility.
Support 12 pcs SFF-8643 internal MH1 mini-SAS HD interface connector for HBA card.
Built-in front access USB3.0 port
Optional internal 2-bay 2.5 HDD cage for OS drive ( SAS/SATA ) or Cache (NVMe) buffer use
SATISFICATION- Whenever you have any queries of products, we’ll dive right in and find out the root cause and feedback the best solution.
SPECIFICATIONS
5U JBOD RACKMOUNT CHASSIS
ACCESSORY
M/B
JBOD"
1
NA
Drive Bays
48X3.5" hot-swap
2
1U Redundant 700W
Front Control
POWER ON/OFF,UID,USB3.0
3
I2C, 4-pin, 600mm
Indicators
POWER STATUS, HDD STATUS, FAN STATUS,LAN ACTIVITY
4
Cooling Fans
80X38 7PCS
5
HDD Backplane
SAS3.0,SATA3.0 X8 12Gb/s Mini-SAS (SFF8643)
6

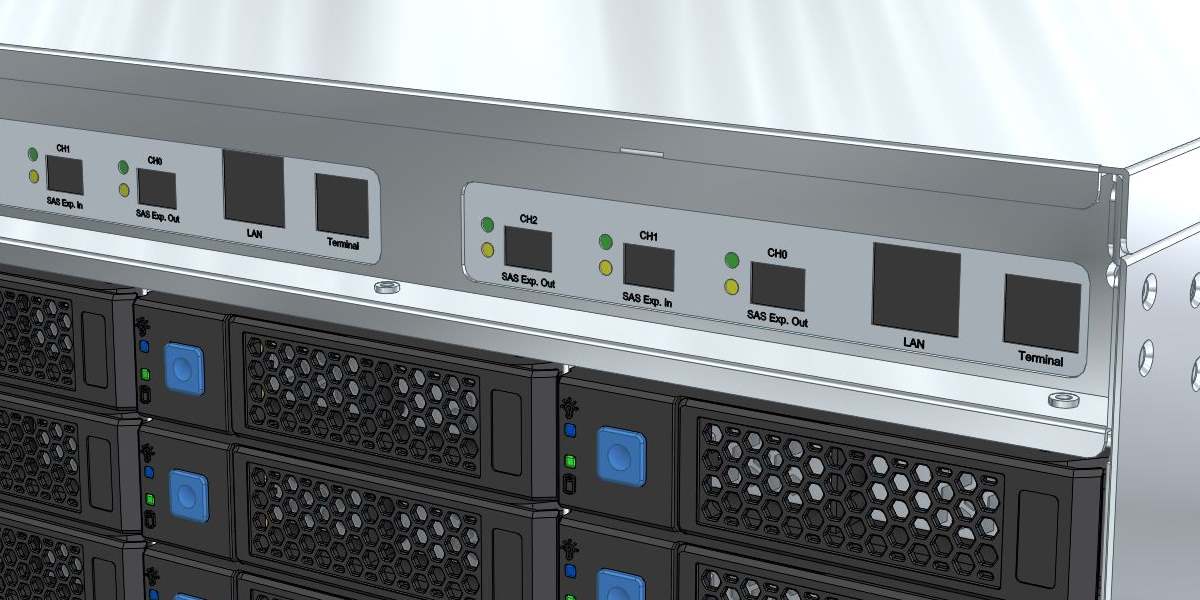

External SAS Port
6 X SFF-8644
PSU Form Factor
1U SINGLE,1U REDUNDANT 80Plus Meet CE Rohs
DOWNLOAD
Material
AL6061,1.0mmSGCC,ABS-PC
1
Datasheet
S548C Datasheet
Net Weight
24.kg
Gross Weight
27.8.kg
Dimensions (DxWxH)
650X431X221 (mm)
