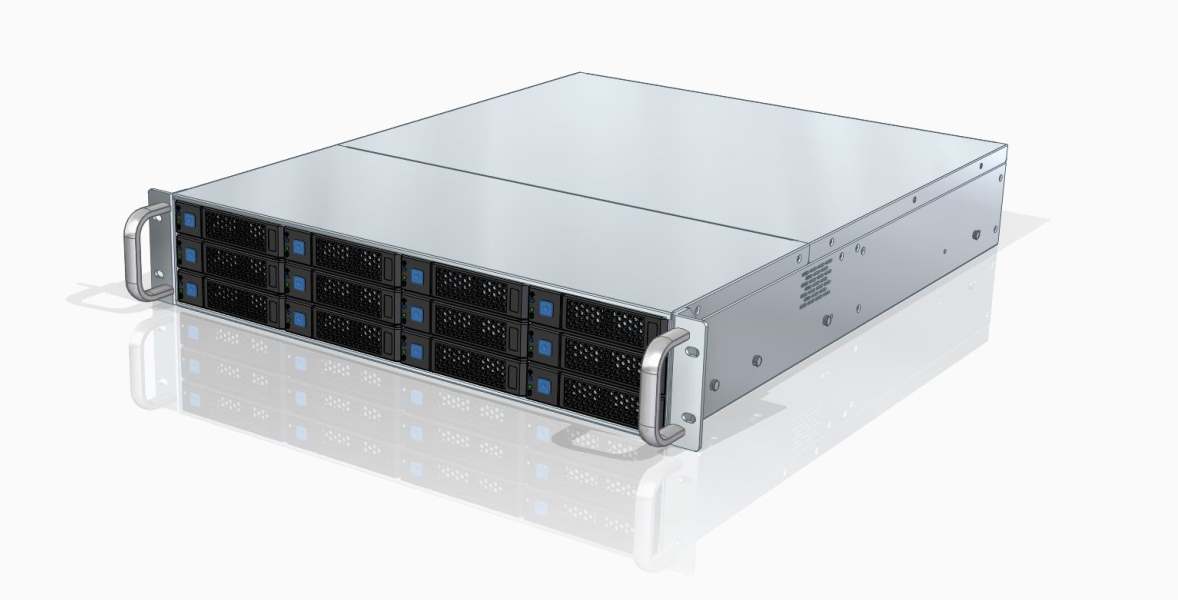

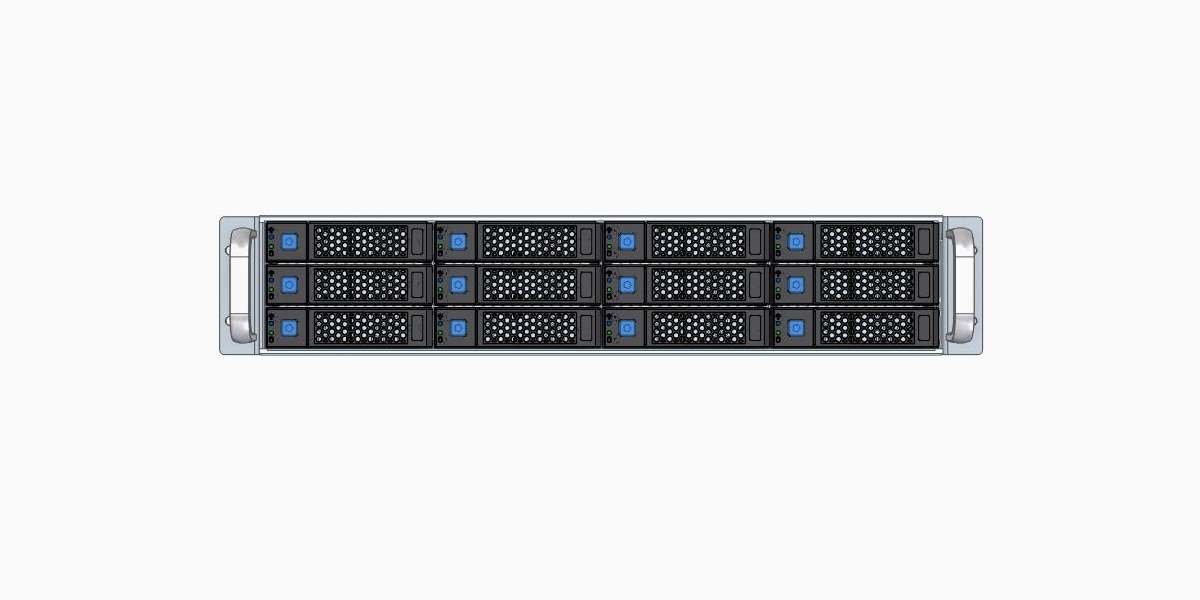

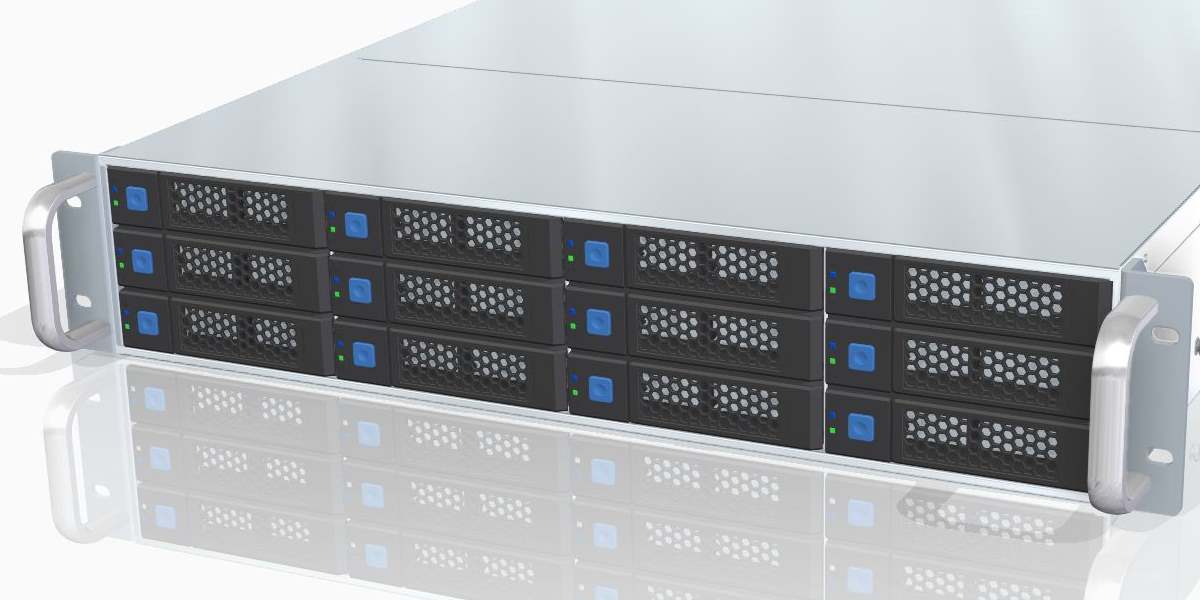

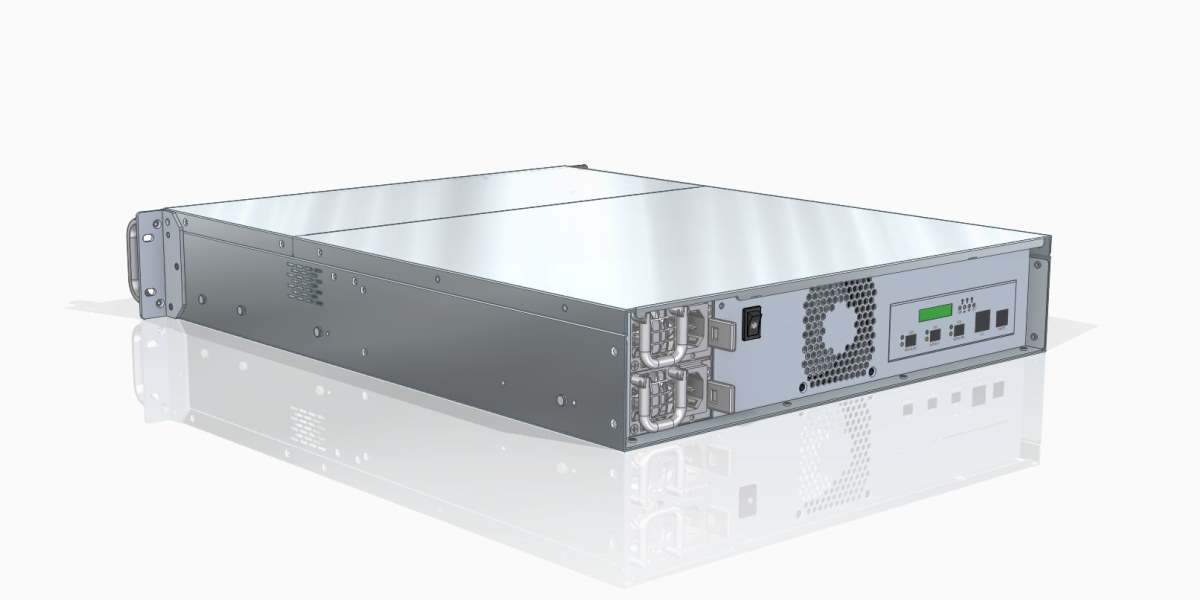

iZEN Chassis Design

Supports 12-bay sas3,sata3 3.5" ,2.5"HDD cage 12Gb/s Mini-SAS HD backplane

Support SAS 3.0 12Gb/s, SATA 3.0 6Gb/s interface or backward compatibility.
Support 1 pcs SFF-8643 internal MH2 mini-SAS HD interface connector for HBA card.
SATISFICATION- Whenever you have any queries of products, we’ll dive right in and find out the root cause and feedback the best solution.

SPECIFICATIONS	2U 12BAY JBOD RACKMOUNT CHASSIS	ACCESSORY
M/B	JBOD	1
Drive Bays	12X3.5" hot-swap	2	PSU 400W, CRPS 2U 600W
Front Control	NA	3	I2C, 4-pin, 600mm
Indicators	POWER STATUS, HDD STATUS, FAN STATUS,LAN ACTIVITY	4
Cooling Fans	80X38 3PCS, 80X25 1PCS	5
HDD Backplane	SAS3.0,SATA3.0 X12 12Gb/s Mini-SAS (SFF8643)	6
Expansion Slots	NA
PSU Form Factor	PS2, PS2 REDUNDANT 80Plus Meet CE Rohs	DOWNLOAD
Material	AL6061,1.0mmSGCC,ABS-PC	1	Datasheet	S212C Datasheet
Net Weight	10.5kg
Gross Weight	12.5kg
Dimensions (DxWxH)	550X431X176 (mm)
