iZEN Chassis Design

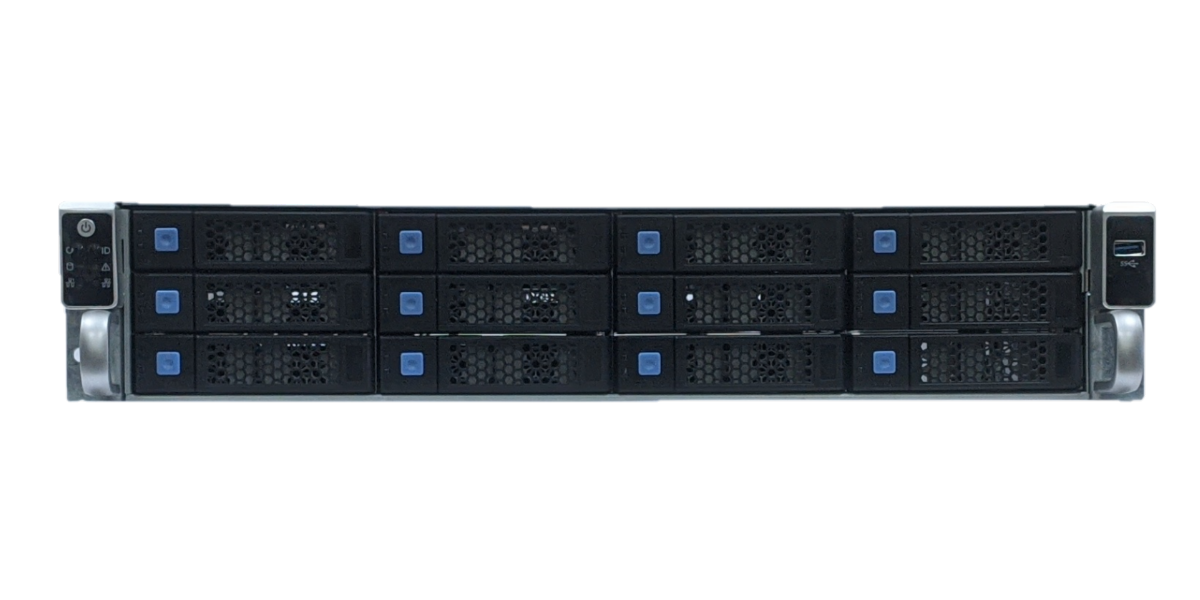

Supports 12-bay sas3,sata3 3.5" ,2.5"HDD cage 12Gb/s Mini-SAS HD backplane

Support SAS 3.0 12Gb/s, SATA 3.0 6Gb/s interface or backward compatibility.
Support 3 pcs SFF-8643 internal MH1 mini-SAS HD interface connector for HBA card.
Built-in front access USB3.0 port
Optional rear 2-bay 2.5 HDD cage for OS drive ( SAS/SAT ) or Cache (NVMe) buffer use
SATISFICATION- Whenever you have any queries of products, we’ll dive right in and find out the root cause and feedback the best solution.

SPECIFICATIONS	2U SERVER RACKMOUNT CHASSIS	ACCESSORY
M/B	E-ATX 12:X13"	1	2.5" DRIVE BAY*2
Drive Bays	12X3.5" hot-swap	2	Riser Card, 2 x PCIe Gen3 x8

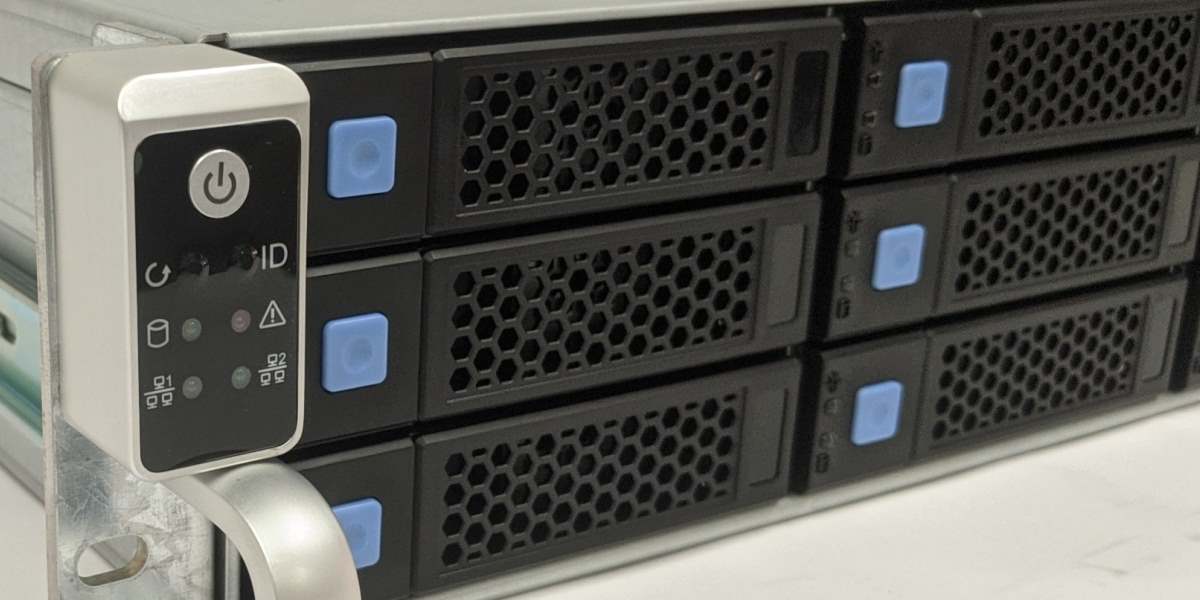

Front Control	POWER ON/OFF,UID,USB3.0	3	PSU Redundant 700W
Indicators	POWER STATUS, HDD STATUS, FAN STATUS,LAN ACTIVITY	4	I2C, 4-pin, 600mm
Cooling Fans	80X25 3PCS	5
HDD Backplane	SAS3.0,SATA3.0 X12 12Gb/s Mini-SAS (SFF8643)	6
Expansion Slots	7X LOW PROFILE
PSU Form Factor	2U SINGLE, 2U REDUNDANT 80Plus Meet CE Rohs	DOWNLOAD
Material	AL6061,1.0mmSGCC,ABS-PC	1	Datasheet	S212A Datasheet
Net Weight	10.0kg
Gross Weight	11.7kg
Dimensions (DxWxH)	650X431X88 (mm)
