S208A

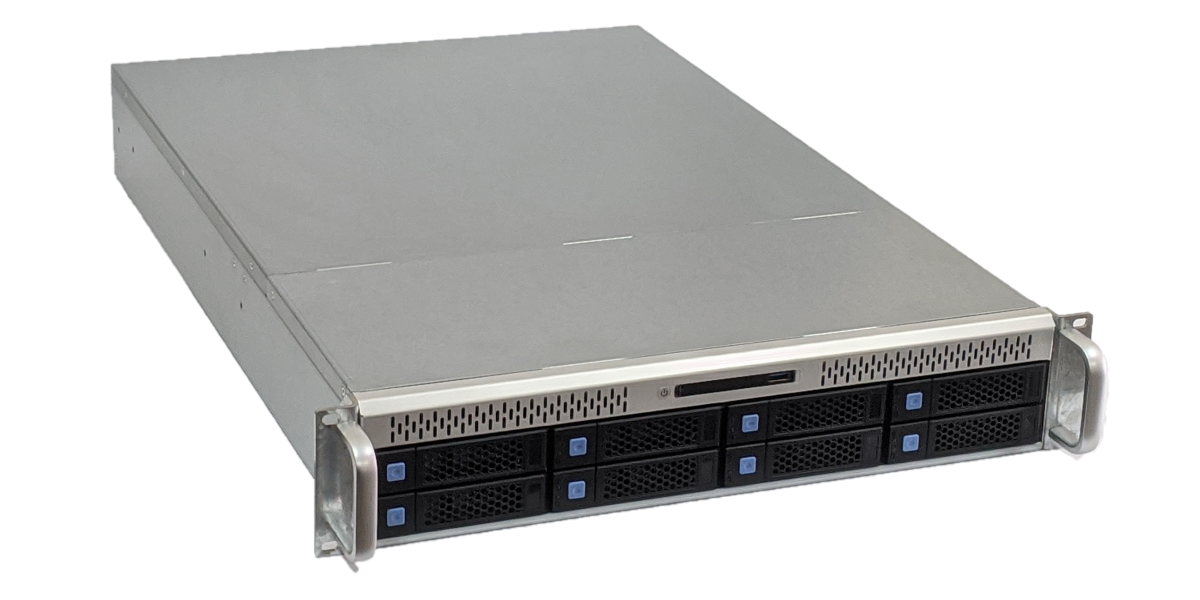

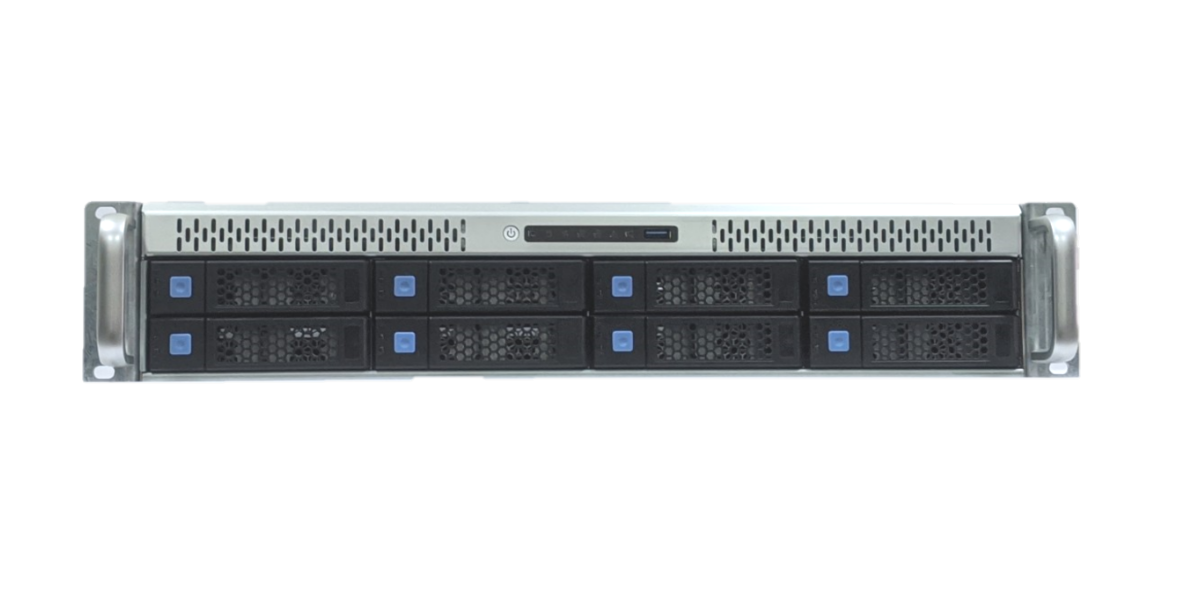

iZEN S208A SERVER CHASSIS
Supports 8-bay sas3,sata3 3.5" ,2.5"HDD cage 12Gb/s Mini-SAS HD backplane
.
Key Features
Support SAS 3.0 12Gb/s, SATA 3.0 6Gb/s interface or backward compatibility.
Support 2 pcs SFF-8643 internal MH1 mini-SAS HD interface connector for HBA card.
Built-in front access USB3.0 port
Optional rear 2-bay 2.5 HDD cage for OS drive ( SAS/SAT ) or Cache (NVMe) buffer use
SATISFICATION- Whenever you have any queries of products, we’ll dive right in and find out the root cause and feedback the best solution.
SPECIFICATIONS
2U SERVER RACKMOUNT CHASSIS
ACCESSORY
M/B
E-ATX 12:X13"
1
2.5" DRIVE BAY*2
Drive Bays
8X3.5" hot-swap
2
Riser Card, 2 x PCIe Gen3 x8

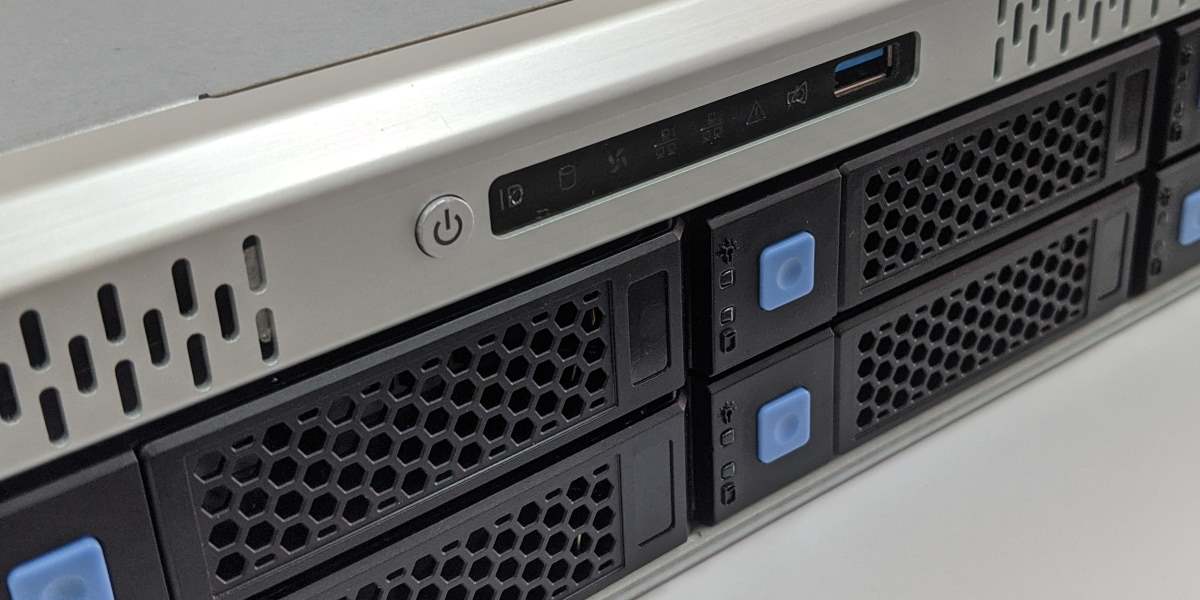

Front Control
POWER ON/OFF,UID,USB3.0
3
PSU Redundant 700W
Indicators
POWER STATUS, HDD STATUS, FAN STATUS,LAN ACTIVITY
4
I2C, 4-pin, 600mm
Cooling Fans
80X25 3PCS
5
HDD Backplane
SAS3.0,SATA3.0 X8 12Gb/s Mini-SAS (SFF8643)
6
Expansion Slots
7X LOW PROFILE
PSU Form Factor
2U SINGLE, 2U REDUNDANT 80Plus Meet CE Rohs
DOWNLOAD
Material
AL6061,1.0mmSGCC,ABS-PC
1
Datasheet
S208B Datasheet
Net Weight
9.3kg
Gross Weight
11.0kg
Dimensions (DxWxH)
550X431X88 (mm)
