S104A

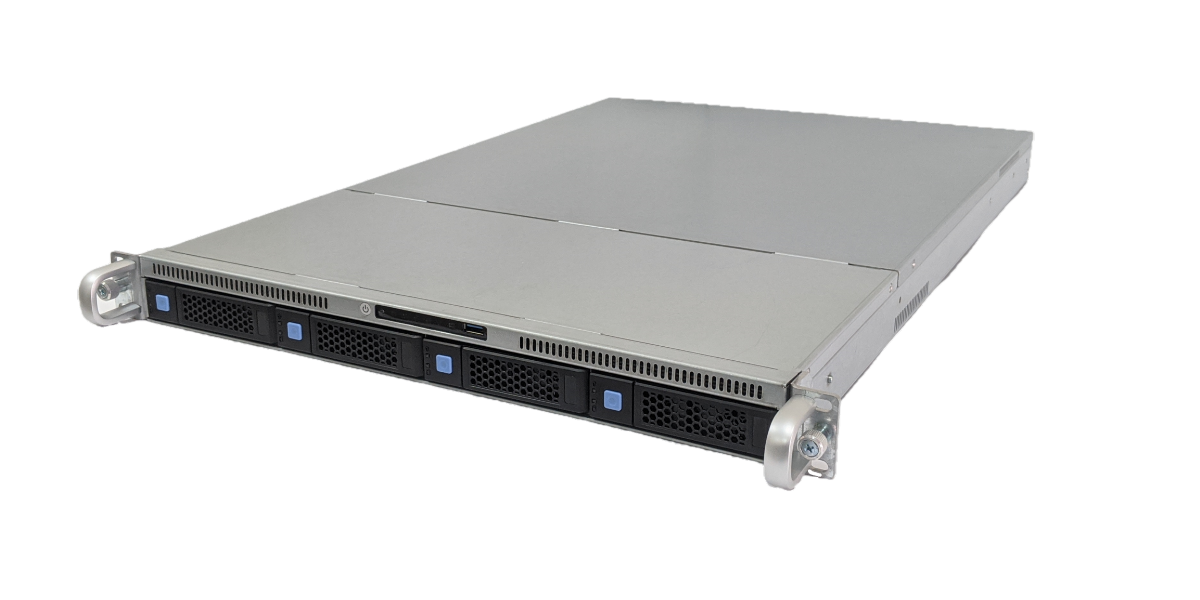

iZEN S104A SERVER CHASSIS
Supports 4-bay sas3,sata3 3.5" ,2.5"HDD cage 12Gb/s Mini-SAS HD backplane
.
Key Features
Support SAS 3.0 12GB/s, SATA 3.0 6GB/s interface or backward compatibility.
Support 1 pcs SFF-8643 internal MH1 mini-SAS HD interface connector for HBA card.

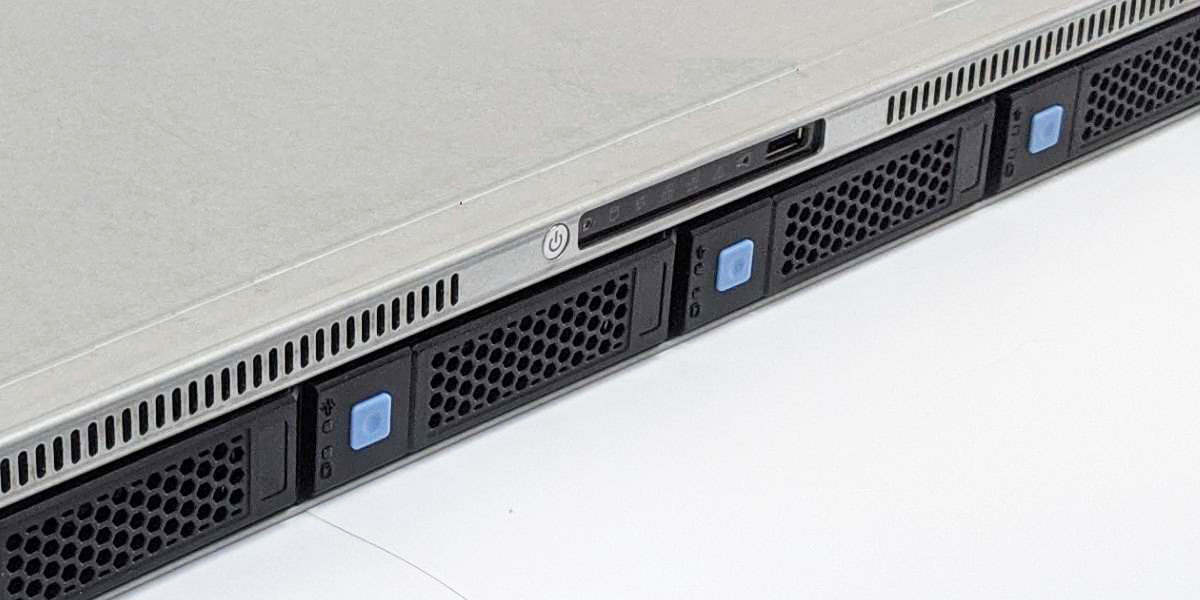

Built-in front access USB3.0 port
Optional rear 2-bay 2.5 HDD cage for OS drive ( SAS/SAT ) or Cache (NVMe) buffer use
SATISFICATION- Whenever you have any queries of products, we’ll dive right in and find out the root cause and feedback the best solution.
SPECIFICATIONS
1U SERVER RACKMOUNT CHASSIS
ACCESSORY
M/B
E-ATX 12:X13"
1
2.5" DRIVE BAY*2
Drive Bays
4X3.5" hot-swap
2
Riser Card, 1 x PCIe Gen3 x16
Front Control
POWER ON/OFF,UID,USB3.0
3
PSU Redundant 700W
Indicators
POWER STATUS, HDD STATUS, FAN STATUS,LAN ACTIVITY
4
I2C, 4-pin, 600mm
Cooling Fans
40X20 4PCS
5
HDD Backplane
SAS3.0,SATA3.0 X4 12Gb/s Mini-SAS (SFF8643)
6
Expansion Slots
1X FULL HIGHT
PSU Form Factor
1U SINGLE
DOWNLOAD
Material
1.0mmSGCC,ABS-PC
1
Datasheet
S104A Datasheef
Net Weight
8.5kg
Gross Weight
10kg
Dimensions (DxWxH)
650X431X44.3 (mm)
